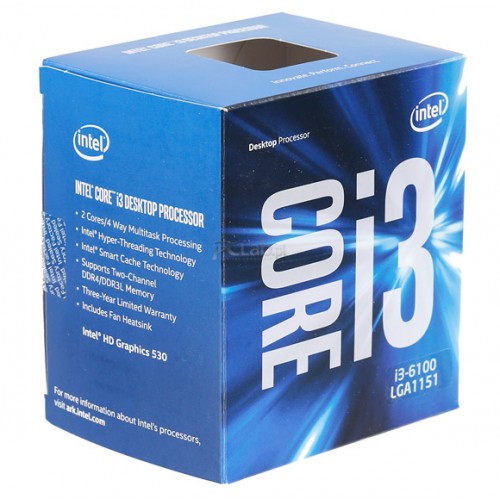

Intel® Core™ i3-6100 Processor 3M Cache, 3.70 GHz
Thương hiệu:
Mã sản phẩm: 232BE6DD
Còn hàng
Liên hệ
Khuyến mãi - ưu đãi
- Giảm giá 10% cho học sinh, sinh viên
- Mô tả sản phẩm
Specifications
|
-
Essentials |
||
| Status | Launched | |
| Launch Date | Q3'15 | |
| Processor Number | i3-6100 | |
| Intel® Smart Cache | 3 MB | |
| DMI3 | 8 GT/s | |
| Instruction Set | 64-bit | |
| Instruction Set Extensions | SSE4.1/4.2, AVX 2.0 | |
| Embedded Options Available
|
Yes | |
| Lithography | 14 nm | |
| Scalability | 1S Only | |
| Thermal Solution Specification | PCG 2015C (65W) | |
| Recommended Customer Price | TRAY: $117.00 | |
| Datasheet | Link | |
|
-
Performance |
||
| # of Cores | 2 | |
| # of Threads | 4 | |
| Processor Base Frequency | 3.7 GHz | |
| TDP | 47 W | |
|
-
Memory Specifications |
||
| Max Memory Size (dependent on memory type) | 64 GB | |
| Memory Types | DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V | |
| Max # of Memory Channels | 2 | |
| Max Memory Bandwidth | 34.1 GB/s | |
| ECC Memory Supported ‡
|
Yes | |
|
-
Graphics Specifications |
||
| Processor Graphics ‡ | Intel® HD Graphics 530 | |
| Graphics Base Frequency | 350 MHz | |
| Graphics Max Dynamic Frequency | 1.05 GHz | |
| Graphics Video Max Memory | 1.7 GB | |
| Graphics Output | eDP/DP/HDMI/DVI | |
| 4K Support | Yes, at 60Hz | |
| Max Resolution (Intel® WiDi)‡ | 1080p | |
| Max Resolution (HDMI 1.4)‡ | 4096x2304@24Hz | |
| Max Resolution (DP)‡ | 4096x2304@60Hz | |
| Max Resolution (eDP - Integrated Flat Panel)‡ | 4096x2304@60Hz | |
| Max Resolution (VGA)‡ | N/A | |
| DirectX* Support | 12 | |
| OpenGL* Support | 4.4 | |
| Intel® Quick Sync Video
|
Yes | |
| Intel® InTru™ 3D Technology | Yes | |
| Intel® Insider™ | Yes | |
| Intel® Wireless Display
|
Yes | |
| Intel® Clear Video HD Technology | Yes | |
| Intel® Clear Video Technology | Yes | |
| # of Displays Supported ‡ | 3 | |
| Device ID | 0x1912 | |
|
-
Expansion Options |
||
| PCI Express Revision | 3.0 | |
| PCI Express Configurations ‡ | Up to 1x16, 2x8, 1x8+2x4 | |
| Max # of PCI Express Lanes | 16 | |
|
-
Package Specifications |
||
| Max CPU Configuration | 1 | |
| Package Size | 37.5mm x 37.5mm | |
| Graphics and IMC Lithography | 14 nm | |
| Sockets Supported | FCLGA1151 | |
| Low Halogen Options Available | See MDDS | |
|
-
Advanced Technologies |
||
| Intel® Turbo Boost Technology ‡ | No | |
| Intel® vPro Technology ‡
|
No | |
| Intel® Hyper-Threading Technology ‡
|
Yes | |
| Intel® Virtualization Technology (VT-x) ‡ | Yes | |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡
|
Yes | |
| Intel® VT-x with Extended Page Tables (EPT) ‡
|
Yes | |
| Intel® TSX-NI | No | |
| Intel® 64 ‡
|
Yes | |
| Idle States | Yes | |
| Enhanced Intel SpeedStep® Technology
|
Yes | |
| Thermal Monitoring Technologies | Yes | |
| Intel® Stable Image Platform Program (SIPP) | No | |
| Intel® Small Business Advantage | Yes | |
|
-
Intel® Data Protection Technology |
||
| Intel® AES New Instructions
|
Yes | |
| Secure Key | Yes | |
|
-
Intel® Platform Protection Technology |
||
| OS Guard | Yes | |
| Trusted Execution Technology ‡
|
No | |
| Execute Disable Bit ‡ | Yes | |
